Function:
It can be used for root pass, hot pass, fill & capping welding of pipeline, vertical and horizontal welding of tanks. GMAW and FCAW-GS welding processes can be applied. All position welding of various workpieces can be realized if various tracks are applied.
Configuration:

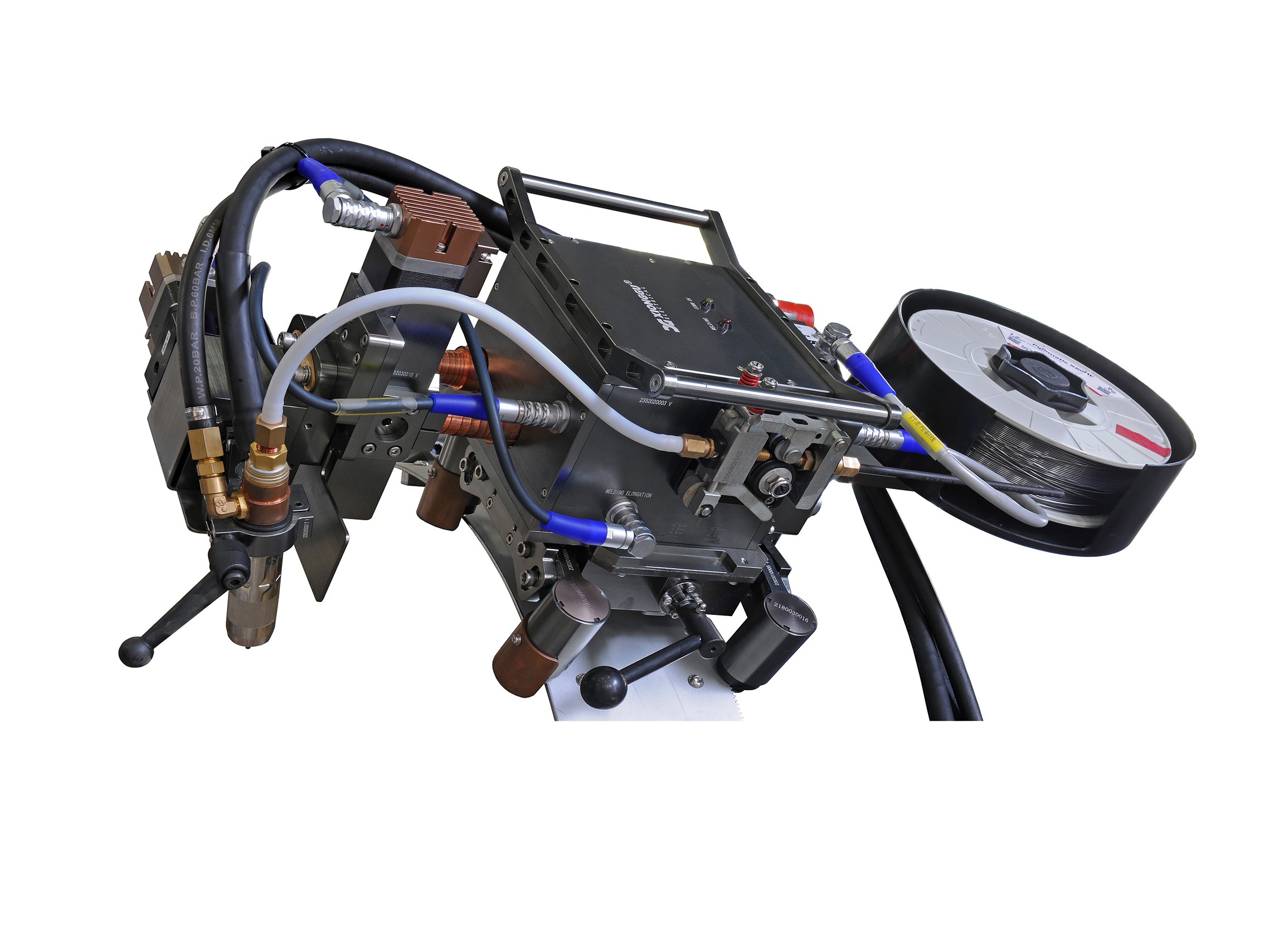

Welding head, LCD portable panel, control cables, digital welding power source (built-in controller).
◆Chinese/English display.
◆The height of the welding head is lower, which is more suitable for the welding in narrow space such as prefabrication of pipeline in refinery plant and urban pipeline construction.
◆Operated via LCD portable panel, convenient and intuitive, reduce the welder's labor intensity.
◆Built-in welding expert database, corresponding welding parameters can be modified and called according to the access level.
◆Smooth transition of welding parameters in each layer and accurate all position welding can be realized.
◆4G mobile web, WiFi and QR code scanning interfaces are reserved; it can provide remote technical services and data cloud transmission to facilitate real-time quality management.
◆With welding seam arc tracking function when GMAW with solid wire process is applied.
◆1G, 2G, 3G, 4G, 5G, 5GX, 6G and 6GX welding can be realized by applying different tracks.
| Model | A-305 |
| Applicable Pipe Diameter | ≥Φ168mm |
| Travel Speed | 0.1~1.5 m/min |
| Wire Feeding Speed | 2.5~16 m/min |
| Number of Section per Group | 1~180 Sections |
| Torch Oscillation Width | 0~50.8mm |
| Torch Oscillation Mode | Linear/pendular |
| Torch Vertical Movement | 0~ 50.8 mm |
| Torch Horizontal Movement | 0~50.8 mm |
| Torch Inclination Angle | ±45° |
| Weight of Wire Spool | 5kg |
| Ambient Temperature | -40~55℃ |
| Altitude | 4500m |
| IP Rating | IP54 |
| Weight | 15.8kg |
| Dimensions (L×W×H) | 600mm×350mm×250mm |
With continuous technological advancements, the appearance, color, and parameters may change. The parameters are for reference only and are not to be used as acceptance inspection standards.
