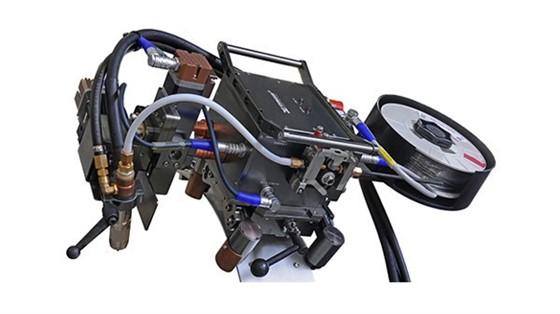

Pipeline automatic welding machine A-305

Product Applications
It can be used for pipe root welding, heat welding, fill welding and cap welding, and is suitable for GMAW/FCAW-GS/GTAW welding processes. The configuration of different tracks is also suitable for the full position welding of other workpieces.
Product Advantages
: Chinese/English operation interface; The trolley has a lower height, which is more suitable for the needs of process pipeline prefabrication and urban pipeline construction for narrow operating space; Hand-held remote control operation, comprehensively reducing the labor intensity of welders;

Product introduction

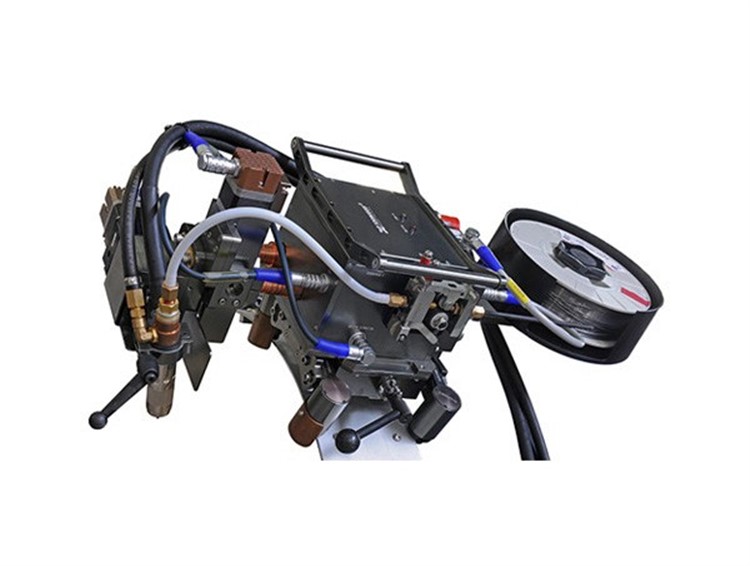

Pipeline automatic welding machine A-305

Function: It can be used for pipe root welding, heat welding, filling welding and cap welding, suitable for horizontal horizontal welding and vertical welding of tanks, and is also suitable for GMAW/FCAW-GS/GTAW welding processes. The configuration of different tracks is also suitable for the full-position welding needs of other workpieces.

Configuration: welding trolley, LCD adapter, control cable; Digital welding power supply (built-in controller).

Product promotion video

Product characteristics

◆ Chinese/English operation interface;

◆The height of the trolley is lower, which is more suitable for the needs of narrow operation space for refining and chemical process pipeline prefabrication and urban pipeline construction;

◆Handheld LCD display remote control operation, convenient and intuitive, comprehensively reduce the labor intensity of welders;

◆ The system has a built-in welding database, which can modify and call the corresponding welding parameters according to the permission;

◆ The system realizes the smooth transition of each layer of welding parameters and accurate all-position welding;

◆ With WIFI, 4G, QR code scanning function; It can provide remote technical services and data cloud transmission to facilitate real-time quality management;

◆ It has the function of automatic arc tracking;

◆ Replace different tracks, 1G, 2G, 3G, 4G, 5G, 5GX, 6G, 6GX position welding can be realized.

Product parameter

Model	A-305
Product Code	4354000000
Adapts to the pipe diameter	≥Φ168mm
Walking speed	0.1~1.5 m/min
Wire feeding speed	2.5~16 m/min
Number of segments per group	1~180 Sections
Welding torch dry extension adjustment distance	0~50mm
The welding torch adjusts the distance left and right	0~50mm
Welding torch inclination adjustment angle	±45°
Torch swing width	0~50 mm
Welding torch swing form	Flat/angular pendulum
Wire spool weight	5kg
Ambient temperature	-40~55℃
altitude	4500m
Ingress protection	IP54
Trolley weight	15.8kg
Dimensions (W×D×H)	600mm×350mm×250mm

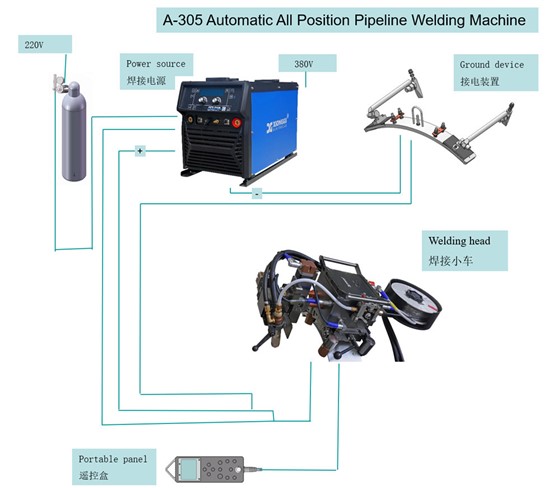

Configuration display

A-305

With continuous technological advancements, the appearance, color, and parameters may change. The parameters are for reference only and are not to be used as acceptance inspection standards.
