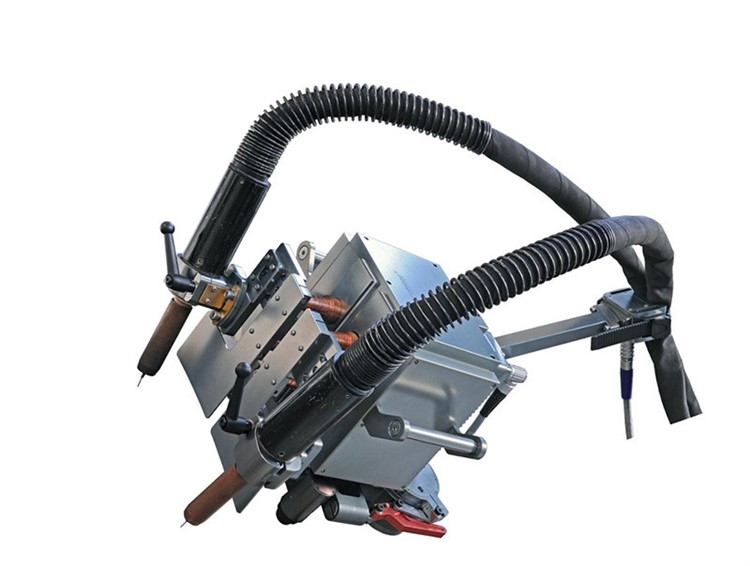

Pipe automatic welding machine A-610

Product Applications
It can be used for field pipe heat welding, fill welding and cap welding, and is suitable for GMAW-S, GMAW-P and FCAW-GS welding processes.
Product Advantages
Chinese/English operation interface; It has the function of automatic tracking of high and low left and right, which comprehensively reduces the difficulty of welder's operation and labor intensity; The application is embedded in the system platform, with a built-in welding expert database, and the corresponding welding parameters can be called according to the permission;

Product introduction

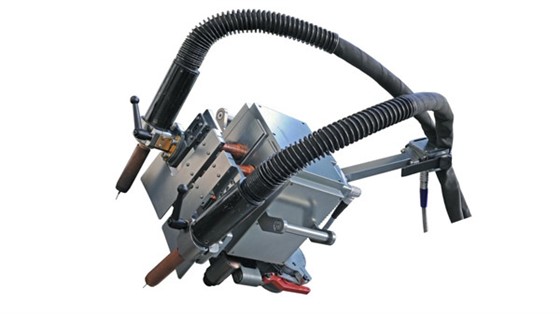

Pipe automatic welding machine A-610

Function: It can be used for field pipe heat welding, fill welding and cap welding, suitable for GMAW-S, GMAW-P and FCAW-GS welding processes.

Configuration: welding trolley, wire feeding device, central controller, handheld LCD remote control, welding power supply, cooling system, water-cooled welding gun, control cable.

Product promotion video

Product characteristics

◆ LCD display, Chinese/English operation interface, friendly and intuitive;

◆ It has the function of automatic tracking of high and low left and right, which comprehensively reduces the difficulty of welder operation and labor intensity;

◆ The application is embedded in the system platform, with a built-in welding expert database, and the corresponding welding parameters can be called according to the permission;

◆ The system can automatically call the corresponding parameters according to the position of the trolley to achieve smooth transition of welding parameters and accurate all-position welding;

◆ With 4G, WIFI, QR code scanning function; It can provide remote technical services and data cloud transmission to facilitate real-time quality management.

Product parameter

Device model	A-610	Product Code	4307000000
Adapts to pipe diameters	≥Φ500mm	Walking speed	0.1~1.55 m/min
Wire feeding speed	2.5~25 m/min	Swing mode	Double torches separate oscillation
Torch angle adjustment	± 10°	Vertical axis travel	50.8mm
Horizontal axis travel	50.8mm	Ambient temperature	-40~55℃
altitude	4500m	Ingress protection	IP54
Welding trolley weight	15.8kg	Dimensions (W×D×H)	345mm×400mm×390mm

Configuration display

A-601

With continuous technological advancements, the appearance, color, and parameters may change. The parameters are for reference only and are not to be used as acceptance inspection standards.
