Product Introduction
-
-

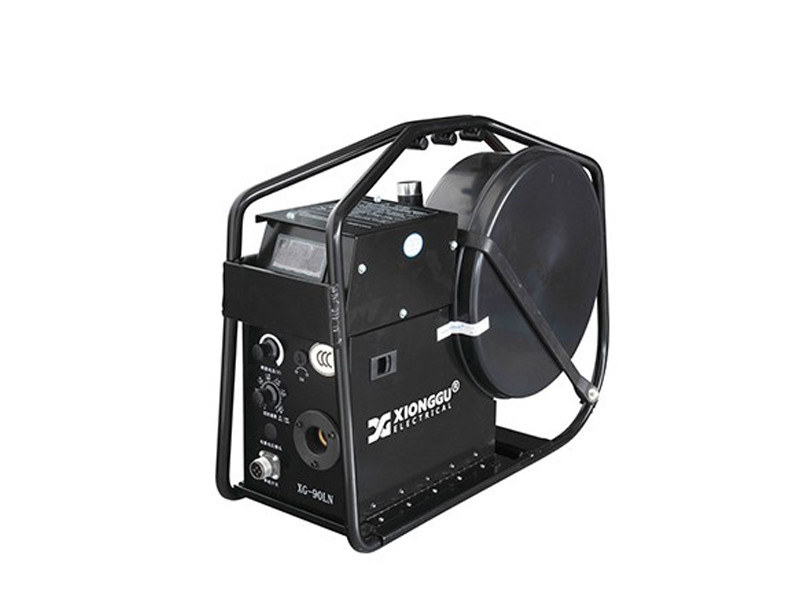

XG-90LN Self-shielding flux cored wire feeder
Application: Feeding welding wire
Features:
Dust-proof, sand-proof, water-proof and vibration-proof design;
Imported wire feeding motor；
Two/four driving rolls feeding wire, stable and reliable.
Product parameters
| Model | XG-90LN |
| Applicable WeldingPower Source |
MPS-500 |
| Rated Input Voltage | DC 24V |
| Rated Input Current | 3A |
| RatedOutputCurrent | 500A |
| Rated Duty Cycle | 60% |
| Wire FeedingSpeed | 0.76~4.06m/min(30~160inch/min) |
| ApplicableWire |
自保护药芯焊丝 Self-shieldingflux-cored wire |
| Max. Wire Spool Capacity | 6.5kg |
| Max. Wire Spool Size | Ф238mm×Ф170mm ×Ф70mm |
| Material of Shell andFrame |
铝 Aluminum |
| ApplicableWire Diameter | Φ2.0mm~Φ2.4mm |
| Dimensions(W×L×H) | 220mm×620mm×470mm |
| Ambient Temperature | -40~55℃ |
| Altitude | ≤1000m |
| IP Rating | IP23 |
| Weight | 12kg |
