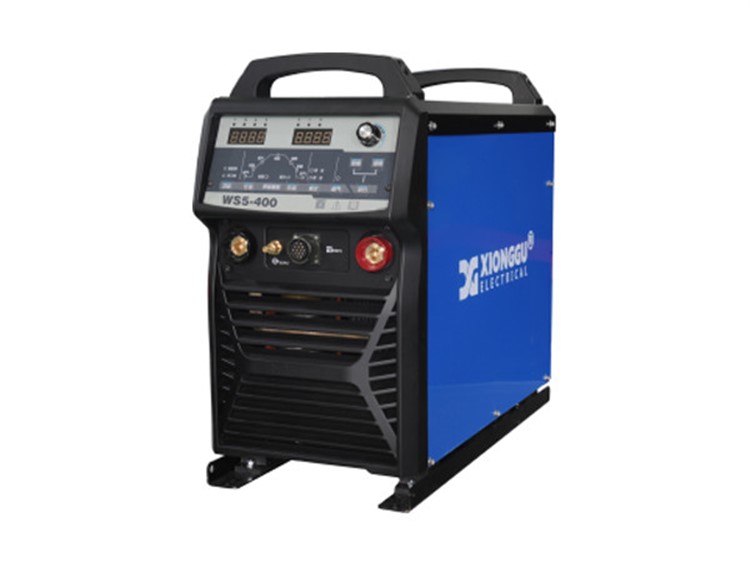

WS5-400 Full Digital Multi-process Welder

Function
WS5-400 Full Digital Multi-process Welder Features
High performance DSP chip is used for power source and arc control to improve product consistency;
Good human-computer interactive operation interface, convenient unified adjustment, and multiple sets of process parameters are stored for calling;

Product Introduction

◆High performance DSP chip is used for power source and arc control to improve product consistency;

◆Good human-computer interactive operation interface, convenient unified adjustment, and multiple sets of process parameters are stored for calling;

◆Key lock protection function, comprehensive welding data management function.

◆Stable arc striking without loss and high success rate of arc striking.

◆More stable and reliable HF arc striking, less electromagnetic interference, no HF discharge black spot.

Product parameters

Model	WS5-400
Product ID	4044010001
Input Power Supply	3 phase 380V±10％50/60Hz
Rated Input Power	20kVA
Rated Input Current	30A
Rated Output Current/Voltage	400A/36V
Rated Duty Cycle	60％
Max. Open-Circuit Voltage (Peak)	94V
Output Current Range	20~400A
Cooling	Air cooled
Ambient Temperature	-40~55℃
Altitude	≤1000m If the altitude is greater than 1000m, the duty circle will decrease
IP rating	IP23
Insulation Grade	F
Weight	38.5kg
Dimensions (W×L×H)	315mm×645mm×565mm

With continuous technological advancements, the appearance, color, and parameters may change. The parameters are for reference only and are not to be used as acceptance inspection standards.
