Product Introduction
-
-

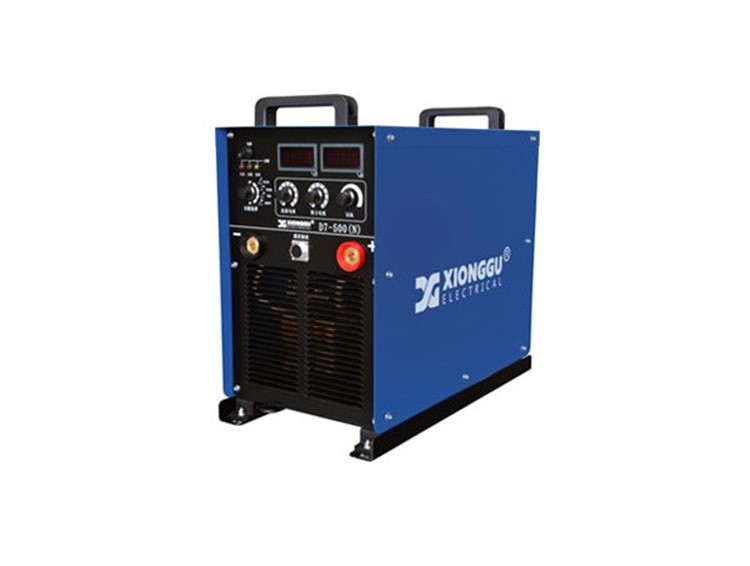

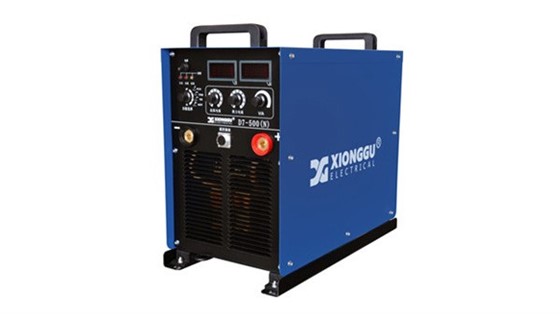

D7-500(N) Multi-process IGBT Inverter Welder
Function:
FCAW-SS, SMAW (cellulose electrode), SMAW (low hydrogen electrode), GTAW (lift arc)Features:
Dust-proof, sand- proof, water-proof, vibration-proof, good environmental adaptability;
Digital preset and display of welding current (CC) and voltage (CV);
IGBT inverter power source, high-efficiency and energy saving;
Good electromagnetic compatibility.
Product parameters
| Model | D7-500(N) | |
| Product ID | 4061010000 | |
| PowerSupply | 3 phase380V±10％50/60Hz | |
| Rated Input Power | 33kVA | |
| Rated Input Current | 50A | |
| Rated Output Current/Voltage | 500A/40V | |
| Rated Duty Cycle | 60％ | |
|
Max. Open-Circuit Voltage(peak) |
CV | 77V |
| CC | 73V | |
| Output Voltage Range（CV） | 17~39V | |
| Output Current Range（CC） | 50~500A | |
| Cooling | Aircooled | |
| Ambient Temperature | -40~55℃ | |
| Altitude | If the altitude is greater than 1000m, the duty circle will decrease） | |
| IP Rating | IP23 | |
| Insulation Grade | F | |
| Accessories | XG-90LN wire feeder, MOG-350 self-shieldingtorch | |
| Weight | 50kg | |
| Dimensions(W×L×H) | 310mm×720mm×560mm | |
