Product Introduction
◆ The data acquisition and transmission system collects data such as welding current, welding voltage and ambience in real time, transmits them to the Internet of things platform server through the Internet of things 4G module, and realizes remote management and quality control of factory, mine and field pipeline welding construction. It supports WIFI, 4G, etc.
◆ High performance DSP chip is used for power source and arc control to improve product consistency.
◆Good human-computer interactive operation interface, convenient unified adjustment, and multiple sets of process parameters are stored for calling.
◆Key lock protection function, comprehensive welding data management function.
◆Stable arc striking without loss and high success rate of arc striking.
◆More stable and reliable HF arc striking, less electromagnetic interference, no HF discharge black spot.
◆ Strong arc force and little spatters when SMAW process (cellulose electrode) is applied, strong adaptation to welding cables of various lengths.
◆ Stable arc at current 40A when SMAW process (cellulose and low hydrogen electrode) is applied.
Product parameters

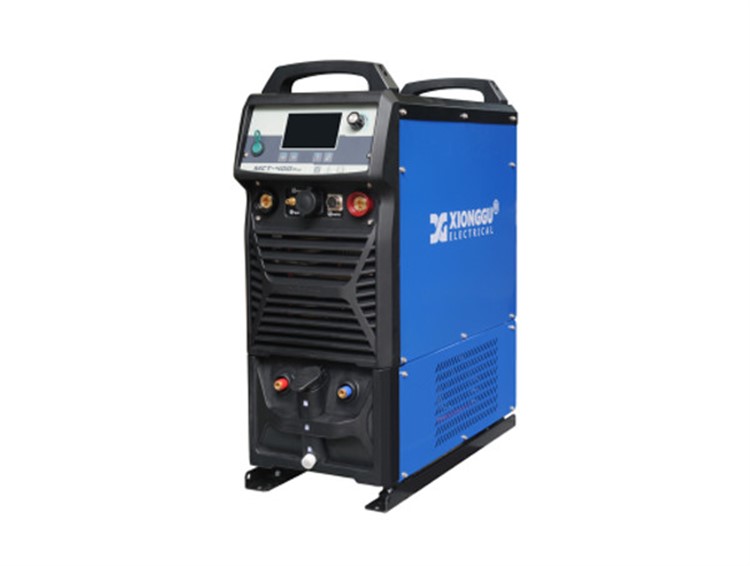

| Model | MCT-400Pro |
| Product ID | 4048000001 |
| Input Power Supply | 3 phase 380V±20％50/60Hz |
| Rated Input Power | 20kVA |
| Rated Input Current | 30A |
| Rated Output Current/Voltage | 400A/36V |
| Rated Duty Cycle | 60％ |
| Max. Open-Circuit Voltage (Peak) | 94V |
| Output Current Range | 20~400A |
| Display | LCD |
| Data Acquisition System | Yes |
| Cooling | Air cooled |
| Ambient Temperature | -40~55℃ |
| Altitude |
≤1000m If the altitude is greater than 1000m, the duty circle will decrease |
| IP rating | IP23 |
| Insulation Grade | F |
| Weight | 54.5kg |
| Dimensions (W×L×H) | 315mm×645mm×775mm |
