Inverter welding machine ZX7-400S-X|Xionggu Jiashi

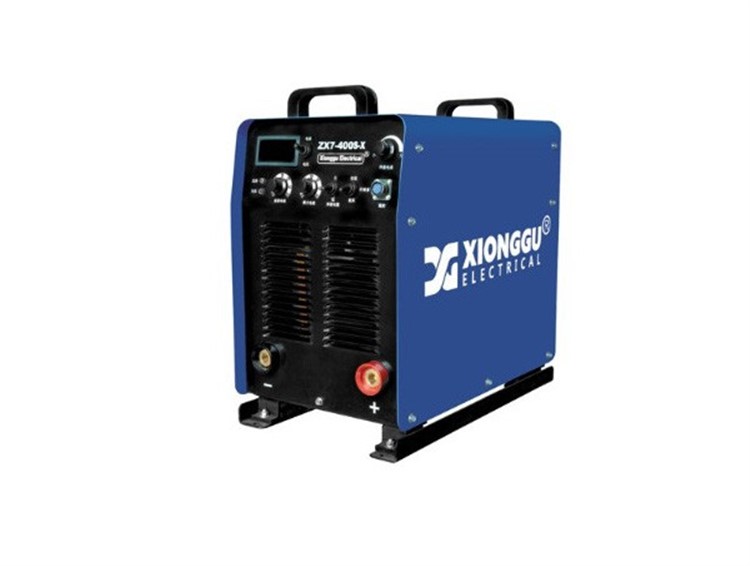

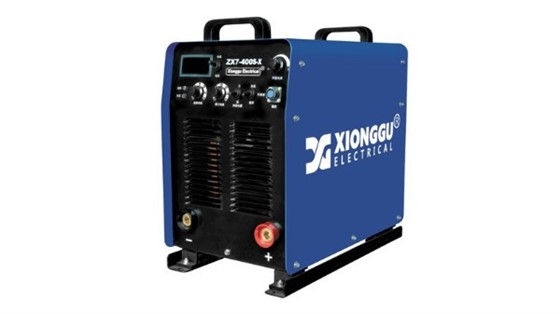

Inverter welding machine ZX7-400S-X

Function
SMAW (cellulose electrode), SMAW (low hydrogen electrode), DC GTAW (lift arc)
Features
Dust-proof, sand-proof, water-proof and vibration-proof dustproof, good environmental adaptability;
Digital preset and display of welding current;
Soft switching IGBT inverter, high efficiency and energy saving;
Suitable for welding with long weld cable;
EMC design, good electromagnetic compatibility.

Product introduction

: ZX7-400S-X IGBT Inverter Welder

Function:
SMAW (cellulose electrode), SMAW (low hydrogen electrode), DC GTAW (lift arc)
Features: Dust-proof, sand-proof, water-proof and vibration-proof dustproof, good environmental adaptability;
Digital preset and display of welding current;
Soft switching IGBT inverter, high efficiency and energy saving;
Suitable for welding with long weld cable;
EMC design, good electromagnetic compatibility.

Product parameter

Model	ZX7-400S-X
Product ID	4020010000
PowerSupply	3phase 380V±10% 50/60Hz
Rated Input Power	20kVA
Rated Input Current	30A
Rated Output Current/Voltage	400A/36V
Rated Duty Cycle	60%
Output Current	40~400A
Open-CircuitVoltage	91V
Cooling	Aircooled
Ambient Temperature	-40~55℃
Altitude	If the altitude is greater than 1000m, the duty circle will decrease
IP Rating	IP23
Insulation Grade	F
Weight	32kg
Dimensions(W×L×H)	288mm×478mm×460mm

With continuous technological advancements, the appearance, color, and parameters may change. The parameters are for reference only and are not to be used as acceptance inspection standards.
