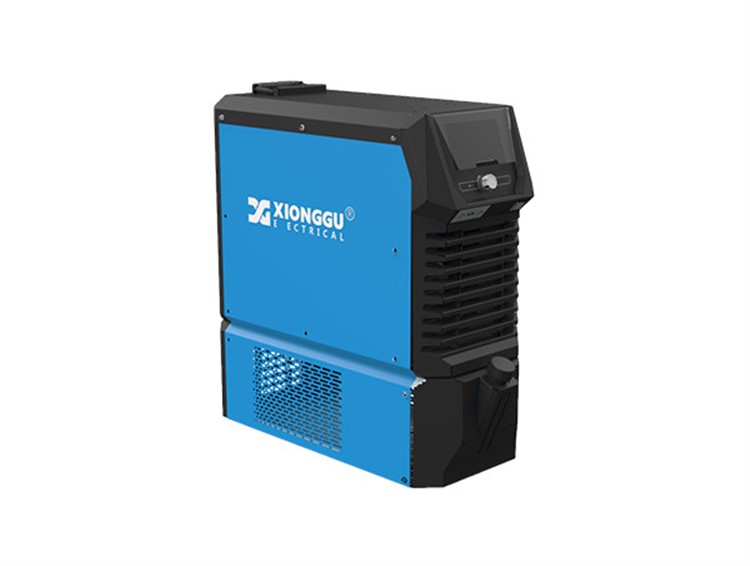

DPS-500Plus fully digital multifunctional welding power source

Function
Accurate, efficient, and innovative
DC/Pulse/RPC/MIX and other functions all-in-one machine
Applicable for welding of carbon steel/stainless steel/aluminum alloy/nickel based alloy, etc Features
Full digital soft switching inverter technology, 100kHz control frequency, extremely fast current response
RPC high-speed short arc pulse control technology, stable arc, low heat input
Applicable for welding of carbon steel, stainless steel, aluminum alloy, nickel based alloy, etc

Product Introduction

Full digital soft switching inverter technology, 100kHz control frequency, extremely fast current response

RPC high-speed short arc pulse control technology, stable arc, low heat input

Applicable for welding of carbon steel, stainless steel, aluminum alloy, nickel based alloy, etc

Applicable for manual welding, DC, pulse, dual pulse Mix, constant penetration and other welding processes.

7.0-inch LCD touch screen display, intuitive display, easy operation

Applicable for long-distance relay wire feeding (20m)

Applicable for remote management system for welding data

Applicable for communication interface for robot

Product parameters

Model DPS-500Plus
InputPowerSupply 3phase380V±20%50/60Hz
RatedInputPower 26.3kVA
RatedInputCurrent 40A
RatedOutputCurrent/Voltage 500A/40V
RatedDutyCycle 60%
Max.Open-CircuitVoltage(Peak) 75V
OutputCurrentRange 20~500A
OutputVoltageRange 12~50V
Man-machinedeliverysystem LCDTouchscreen
DataAquisitionSystem Yes
Cooling Aircooled
AmbientTemperature -40~55℃
Altitude ≤1000m Ifthealtitudeisgreaterthan1000m,thedutycirclewilldecrease)
IPrating IP23
InsulationGrade F
Weight 57kg
Dimensions(W×L×H) 716mm×332mm×579mm
With continuous technological advancements, the appearance, color, and parameters may change. The parameters are for reference only and are not to be used as acceptance inspection standards.
